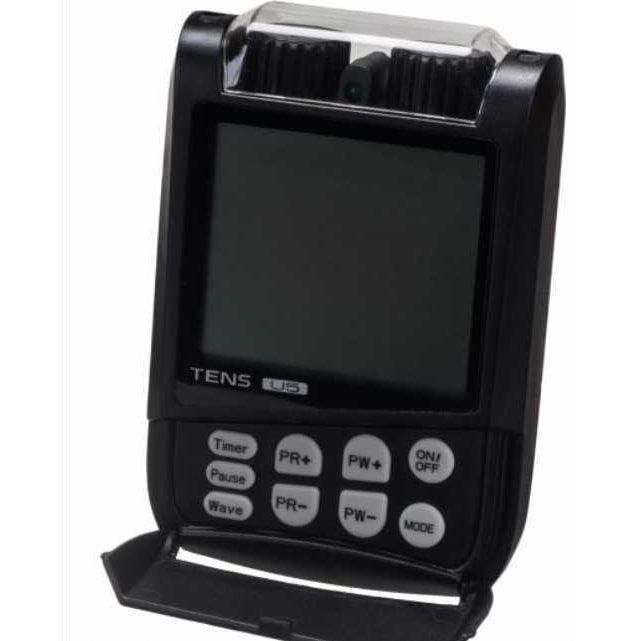

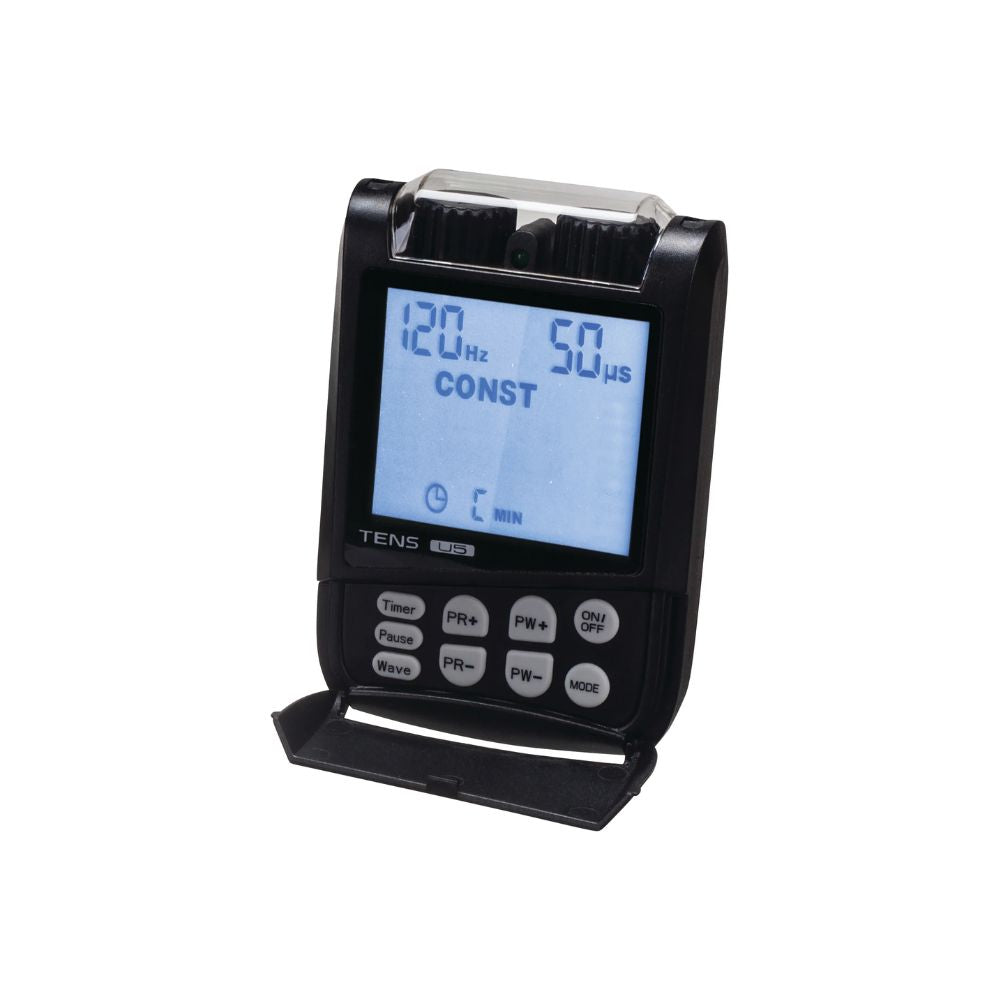

Ultima 5 Digital TENS Unit

Ultima® 5 Digital TENS Unit

Portable, Drug-Free Pain Relief with Five Treatment Modes

The Ultima 5 Digital is an advanced, pocket-sized Transcutaneous Electrical Nerve Stimulation (TENS) systemdesigned to provide effective, non-invasive pain relief for both acute and chronic conditions—without the use of medications or injections.

By delivering gentle electrical impulses through the skin, the Ultima 5 works to interrupt pain signals before they reach the brain, helping reduce discomfort and improve quality of life. With five distinct therapy modes, clinicians and patients can customize treatment for optimal results.

Key Features & Benefits:

• Five Therapy Modes: Offers versatility in pain management for different clinical needs

• Dual-Channel Output: Treat two separate areas at the same time or target one area with greater coverage

• Pocket-Sized & Portable: Lightweight design for use at home, work, or on the go

•  Drug-Free Pain Management: Reduces dependency on medication for pain relief

• Adjustable Settings: Easily tailor treatment intensity and frequency to patient comfort

Ideal For:

• Back, neck, and shoulder pain
• Joint pain and arthritis
• Post-surgical discomfort
• Sports and overuse injuries
• Chronic pain syndromes

The Ultima 5 Digital TENS Unit offers an affordable, portable, and effective way to deliver targeted pain relief—trusted by physical therapists, chiropractors, and patients nationwide.

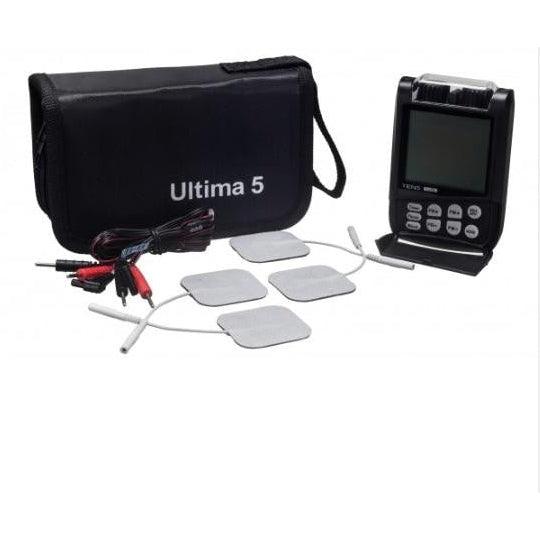

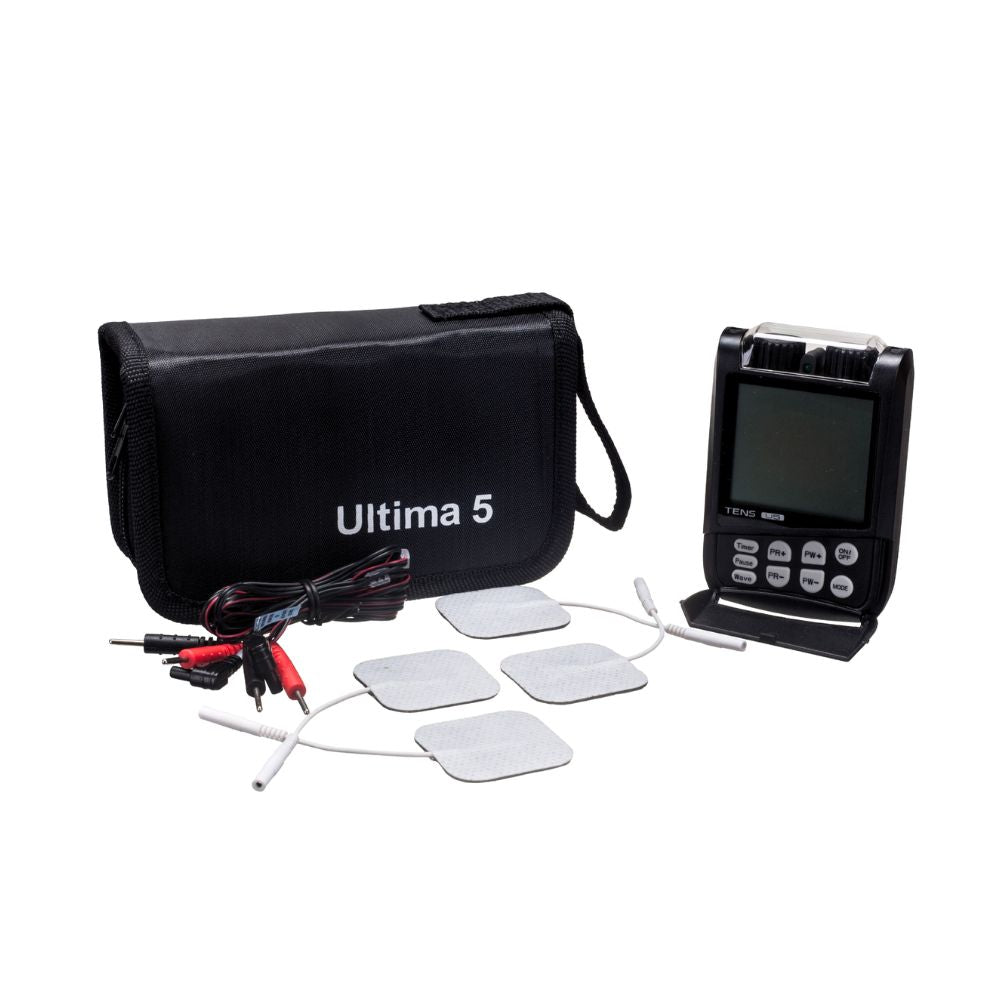

What's Included:

• Ultima 5 Digital Dual Channel TENS Unit - 5 Mode
• 4 - 1.5" x 1.5" Square Electrodes
• 2 - Lead Wires (pin style)
• 2 - AA Alkaline Batteries
• Instruction Booklet
• Zip-Up Travel Size Carrying Case
• Note: With proper care, electrodes can be reused for over 20 applications. We recommend purchasing an electrode spray and additional electrodes with your tens unit

Technical Specifications:

• Pulse Width: From 50µS to 250µS adjustable
• Frequency: 2 to 150 Hz, adjustable.
• Maximum Charge: 20 microcoulombs per pulse.
• Modes: Five Modes: Constant, Burst, 3 modulation modes
• Timer: Continuous, 15, 30,45,60,90 minute
• Power Source: 2 AA LR6 Alkaline batteries

Looking for a TENS Unit with more features? Consider the Ultima 20 TENS Unit

What TENS can do

Ultima 5 may not work for everybody who suffers from pain. But for many people, Ultima offers comforting relief, reducing, and often even eliminating pain. Because there are many different kinds of pain, and each individual is unique. Ultima pain relief varies from person to person. Some users experience relief only when the Ultima is turned on. For others, relief continues for a length of time even after the unit is turned off. Some users experience relief in one mode, some in others.

The Ultima system can help you return to normal activity. It is about the size of a pack of playing cards and battery-powered, so you can wear it everywhere - at home, to work, in your car. And it is equipped with a convenient clip so you can wear it on your belt or even inside your clothing.

How Transcutaneous Electrical Nerve Stimulation works

Transcutaneous Electrical Nerve Stimulation (TENS) is a non-invasive, drug-free method of controlling pain. TENS Units use tiny electrical impulses sent through the skin to nerves to modify your pain perception. In most people it is effective in reducing or eliminating the pain, allowing for a return to normal activity. In many people, the reduction or elimination of pain lasts longer than the actual period of stimulation (sometimes as much as three to four times longer). In others, pain is modified while stimulation occurs. Unit overrides the pain signal to the brain by sending a comfortable electronic impulse. When the TENS Unit overrides the pain signal, it "tricks" the brain into thinking there is NO PAIN. This produces Fast and Rapid Pain Relief, usually within a minute or two. You can control and customize the intensity, pulse rate, and pulse width to "experiment" and find the best setting for your pain relief.

Purchase Statement

I am currently under the treatment of a physician who has prescribed this product. I will read and completely follow all directions provided by the manufacturer, as well as for instructions from my physician regarding treatment times, and protocols. I understand that I will assume all responsibility for the use/misuse of this product. I will contact my physician immediately in case of any unusual reactions caused by the use of this product. I understand that SOURCE Orthopedic is only a distributor and in no way assumes responsibility for any injury it may cause due to malfunction, misuse, inappropriate application, or other reason. By clicking “add to cart” you certify that the above statement(s) is/are true.

Due to Health and Safety Regulations, this item is nonreturnable.
